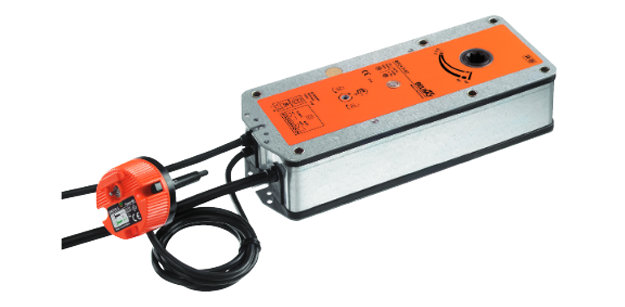

Modulating spring-return actuator, combined with thermoelectric tripping device (72°C), for fire and smoke dampers 90° in ventilation and air-conditioning systems.

• Nominal torque 18 Nm / 12 Nm
• Nominal voltage AC/DC 24 V
• Control modulating
• Damper rotation form fit 12 mm (10 mm with enclosed adapter)

  Modulating spring-return actuator, combined with thermoelectric tripping device (72°C), for fire and smoke dampers 90° in ventilation and air-conditioning systems.

• Nominal torque 18 Nm / 12 Nm
• Nominal voltage AC/DC 24 V
• Control modulating
• Damper rotation form fit 12 mm (10 mm with enclosed adapter)



Технические характеристики

Electrical data
Nominal voltage	AC/DC 24 V
Nominal voltage frequency	50/60 Hz
Nominal voltage range	AC 19.2 V ... 28.8 V / DC 21.6 V ... 28.8 V
Power consumption in operation	7 W
Power consumption at rest	2 W
Power consumption for wire sizing	9.5 VA
Power consumption for wire sizing note	Imax 8.3 A @ 5 ms
Auxiliary switch	2 x SPDT
Switching capacity auxiliary switch	Contact gold-plated silver: 1 mA … 3 (0.5) A, DC 5 V … AC 250 V (II Totally insulated)
Switching points auxiliary switch	5° / 80°
Connection supply / control	Cable 1 m, 4 x 0.75 mm² (halogen-free)
Connection auxiliary switch	Cable 1 m, 6 x 0.75 mm² (halogen-free)
Cable length thermoelectric tripping device	1 m
Functional data
Torque motor	Min. 18 Nm
Torque spring-return	Min. 12 Nm
Control signal Y DC	0 V ... 10 V
Control signal Y note	Input impedance 100 kΩ (0.1 mA)
Operating range Y DC	2 V ... 10 V
Operating range Y note	For control signal Y
Position feedback U DC	2 V ... 10 V
Position feedback U note	Max. 0.5 mA (for 0 … 100% angle of rotation)
Position accuracyn	±5%
Direction of rotation motor	Can be selected by mounting L / R
Angle of rotation	Max. 95°
Running time motor	‹120 s / 90°
Running time spring-return	16 s (tamb = 20°C)
Sound power level motor max.	45 dB (A)
Sound power level spring-return max.	63 dB (A)
Damper rotation	Form fit 12 mm (10 mm with enclosed adapter)
Position indication	Mechanically, with pointer
Service life	Min. 60,000 safety positions
Safety
Response temperature thermal fuse	Tf1: Duct outside temperature 72°C Tf2 and Tf3: Duct inside temperature 72°C
Protection class IEC/EN	III Safety extra-low voltage
Degree of protection IEC/EN	IP54 in all mounting positions
EMC	CE according to 2014/30/EU
Low-voltage directive	CE according to 2014/35/EU
Certification IEC/EN	Certified according to IEC/EN 60730-1 and IEC/EN 60730-2-14
Mode of operation	Type 1.AA.B
Rated impulse voltage supply / control	0.8 kV
Control pollution degree	3
Ambient temperature normal duty	-30°C … 50°C
Ambient temperature safety duty T	he safety position will be attained up tomax. 75°C
Non-operating temperature	-40°C ... 50°C
Ambient humidity	95% r.h., non-condensing
Maintenance	Maintenance-free
Weight
Weight	approx. 2.8 kg



Описание

Mode of operation
The actuator is controlled with a standard signal of DC 0 ... 10 V and moves the damper to the operating position while tensioning the return spring at the same time. The damper is turned back to the safety position by spring energy when the supply voltage is interrupted.

Thermoelectric tripping device
If the ambient temperature of 72°C is exceeded, the thermal fuse Tf1 responds.
If the duct inside temperature of 72°C is exceeded, the exchangeable thermal fuse Tf2/Tf3 will respond.
When the thermal fuses Tf1, Tf2 or Tf3 respond, the supply voltage is interrupted permanently and irreversibly.
The LED is lit when
– there is a supply voltage,
– the temperature fuses are OK and
– the test switch is not pressed.
The function of the thermal fuse and the test button is only warranted if the actuator is connected to the power supply and has reached its operating position (LED on).

Signalling
Two microswitches with fixed settings are installed in the actuator for indicating the damper end positions.
The position of the damper blade can be read off on a mechanical position indicator.

Manual operation
Without power supply, the damper can be operated manually and fixed in any required position. It can be unlocked manually or automatically by applying the supply voltage. If manual operation is used when supply voltage is present, the actuator first moves to the safety position for checking and then to the position as defined by positioning signal Y. During this self-check, the motor running time is increased to 100 s and the measuring voltage remains at 2 V.

Купить привод БЕЛИМО BF24-SR-T а также запросить его цену и стоимость вы можете позвонив по телефону: 8 (499) 201-22-47

Скидки и оптовые цены на электропривод БЕЛИМО BF24-SR-T мы обсуждаем индивидуально.

На привод воздушной заслонки BELIMO BF24-SR-T распространяется 5 лет гарантии с момента продажи, а также сертификат соответствия и паспорт изделия.

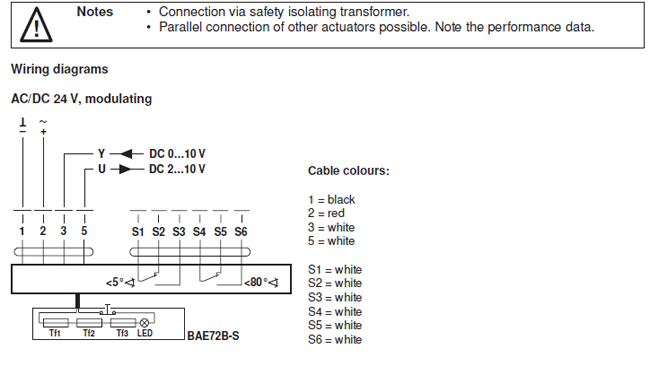

Электрическое подключение

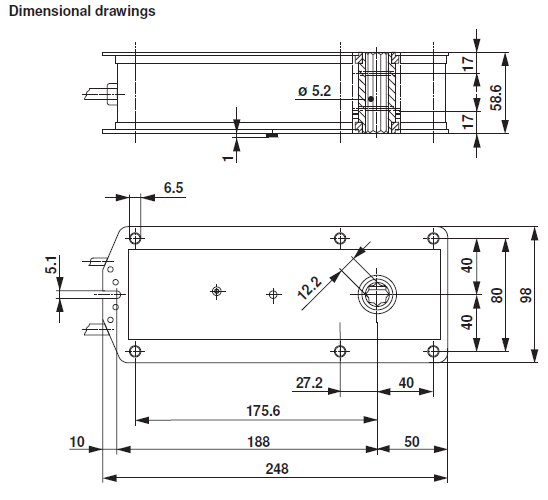

Габаритные размеры





Скачать PDF



Скачать PDF (301 Кбайт)

Сертификат BELIMO (775 Кбайт)
